Mictrack Firmware Upgrade Tool

Mictrack Firmware Upgrade

MT700 / MT710 — USB firmware updater

REAL USB

Before you start

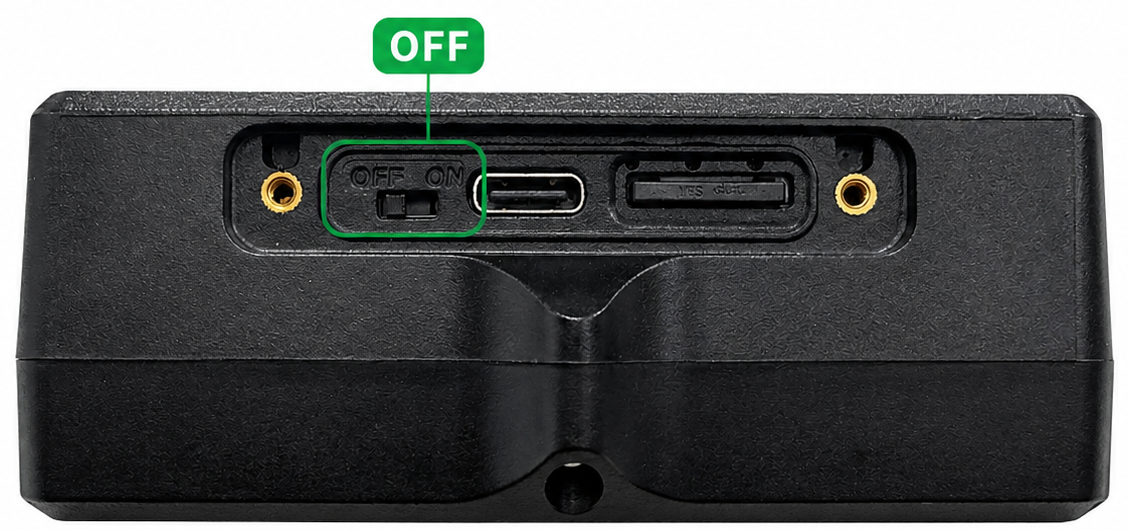

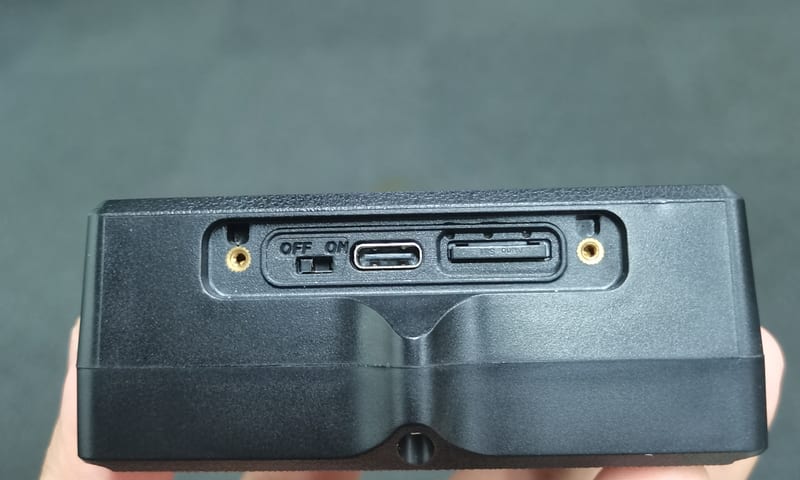

1 Switch the device power to OFF
2 Connect the USB Upgrade Cable — USB-A to the PC, USB-C to the device

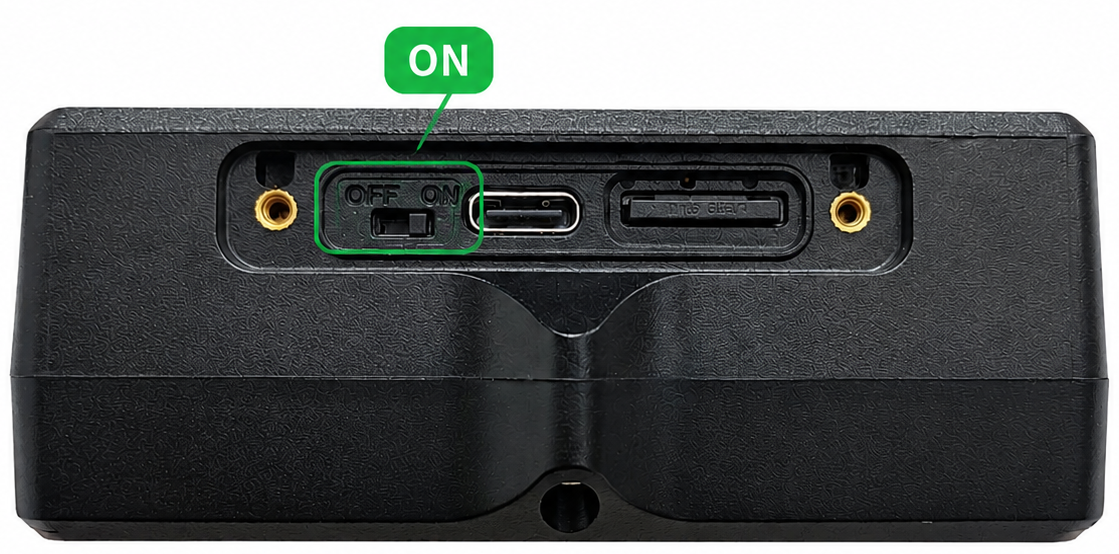

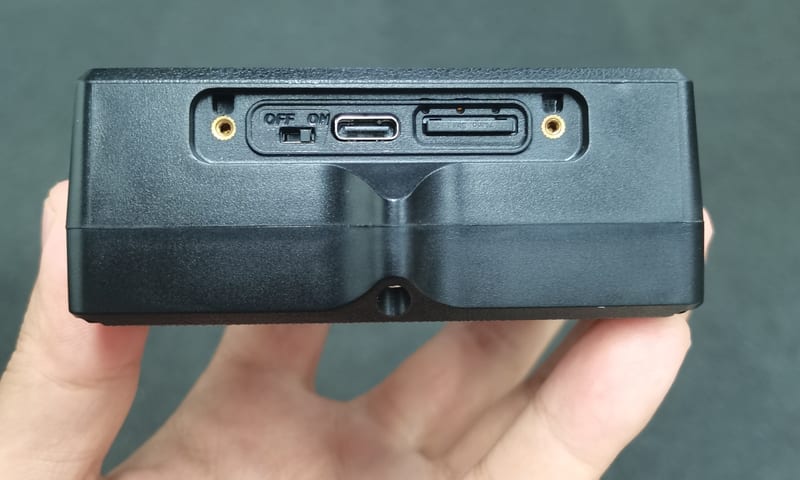

3 Switch the device power to ON

Batch mode — upgrade multiple devices without reloading firmware or key file

1

Select COM port

Click Connect and pick the port in the browser dialog (look for "USB Serial" or "Prolific").

2

Load the firmware file

Choose the .hex file Mictrack sent you. Check that it matches your device model (printed on the label).

I confirm this firmware matches my device model (printed on the device label) — Mictrack sent me this exact file.

3

Upgrade

Click Start upgrade. Do not unplug or power off during the process (~25 seconds).

4

Complete setup — Factory Reset

1 Unplug the USB Upgrade Cable
2 Power the device OFF, then ON
3 Connect the USB Config Cable

Check KEY after reset — for devices where LIC may fail after upgrade

Leave unchecked for normal upgrades.
